FSC-BT631D
BLUETOOTH 5.4 / LE AUDIO MODULE
LC3 CODEC / AURA CAST
FSC-BT631D

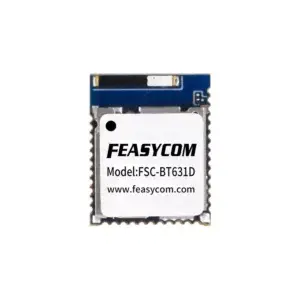

The Feasycom FSC-BT631D is a LE Audio module that utilizes the Nordic nRF5340 chip, supporting both BR/EDR and LE Audio. This module comes preloaded with Feasycom's powerful and user-friendly firmware. It is designed to be easy to use and fully encapsulated, providing a seamless integration experience. With Feasycom firmware, users can access Bluetooth functionality through simple ASCII commands delivered to the module over a serial interface. It functions like a Bluetooth modem, allowing developers to easily incorporate Bluetooth wireless technology into their designs. The FSC-BT631D module from Feasycom offers an ideal solution for developers seeking to integrate Bluetooth wireless technology into their designs. Its powerful features and ease of use make it a versatile choice for a wide range of applications such as LE Audio, home automation, multimedia players, medical application, and true wireless earbuds.
Main Features
-
BLE 5.4 and BR/EDR
-
LE Audio
-
Direction finding
-
2 Mbps, Advertising extensions and long range
-
Class 1 Bluetooth power level supported
-
Bluetooth mesh
-
Thread, Zigbee and 802.1 5.4
-
NFC
-
Full-speed USB
-
Secure key storage
-
Low Complexity Communications Codec (LC3)
-
I2S and PDM audio interfaces
-
Capable of all angle-of-arrival (AoA) and angle-of-departure (AoD) roles in Bluetooth Direction Finding
-
Ultra-low-power radio
